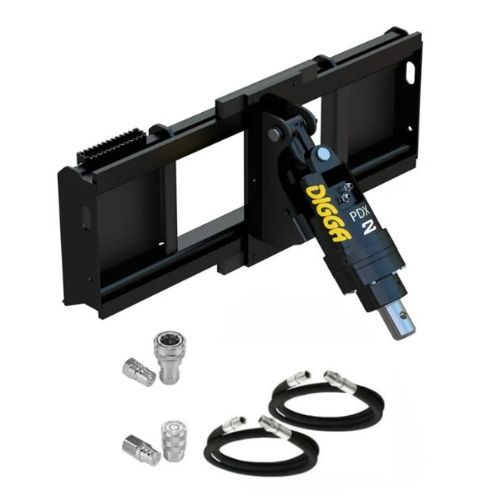

Digga PDX-2 Auger Drive Package with frame for skid steers with a flow 30 to 50 lpm
Micro Auger Drives 750Kg-2T
Digga's PDD to PDX2 range of drilling auger drive units and earth drills are ideally suited for micro excavators and small skid steer loaders with a flow between 15 to 55 lpm. Ideally used for drilling holes for fencing, tree planting, house foundations, and more. Innovative design allows the gearbox to go down the hole to maximise drilling depth without extentions, eliminating downtime and minimises maintenance, optimising your returns. Digga planetary auger drives are fitted with Digga/Danfoss bell motors specially designed for drilling and augering in most ground conditions.
- Compact high torque Digga manufactured gearbox
- Highly efficient design with less moving parts
- Fitted with a DIGGA Bell Motor by Danfoss
- No case drain required
- Full range of shafts available upon request
- Extreme duty shaft locking system
- Drive fits down the hole for greater digging depth
- Low maintenance with 5yr gear box and 3yr motor warranty
Features & Benefits
Digga drives come packed with really practical features like top mounted hose ports, cutting edge design, and a 2 piece shaft just to name a few. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.
Premium Drive Specifications
| SPECIFICATION | PDD | PDX | PDX2 |
|---|---|---|---|
| Recommended Flow | 15-45 lpm | 20-50 lpm | 30-50 lpm |
| Max Torque | 1171 Nm | 1743 Nm | 2307 Nm |
| Motor | 2K Geroler | 2K Geroler | 2K Geroler |
| Pressure Valve Fitted | Optional | Optional | Optional |
| Energy Control Valve | N / A | N / A | N / A |
| Case Drain Required | No | No | No |
| Max Pressure - Do not exceed | - - - - - - - - - - 240 bar @ 60 lpm - - - - - - - - - - | ||
| Max Flow - Do not exceed | - - - - - - - - - - 115 lpm @ 130 bar - - - - - - - - - - | ||
| Max Power - Do not exceed | - - - - - - - - - - 25 Kw (34 hp) - - - - - - - - - - - | ||
| Overall Length | 557 mm | 557 mm | 557 mm |
| Diameter | 187 mm | 187 mm | 187 mm |
| Weight (no frame / hitch) | 41 Kg | 45 Kg | 45 Kg |
| Std Output Shaft | 65 mm Round | 65 mm Round | 65 mm Round |
| Swing Control | N / A | N / A | N / A |
| Dig align | N / A | N / A | N / A |
| Halo | Optional | Optional | Optional |
| Rec Auger | 4 Series | 4 Series | 4 Series |
| Max Auger Dia Clay / Shale | 400 mm | 400 mm | 450 mm |
| Max Auger Dia Earth | 500 mm | 500 mm | 600 mm |
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
HALO - The future of drilling
HALO is an alignment system located in the hood ring of the auger drive, which provides an operator with a simultaneous clear line of sight to itself, as well as the hole being dug. HALO utilises a band of LED lights, which when fully illuminated green, indicate the drive is plumb. If the drive moves from its plumb position, a sequence of red and green lights will be lit to effortlessly guide the operator back to plumb. Halo is currently available for Digga PDD-PD50 auger drives, and 2 speed Digga auger drives.
Why you need HALO
- No need for a spotter and spirit level to guide the operator - HALO does not take holidays or sick leave
- Never take your eyes off the job
- Ensure holes are drilled plumb and reduce the number of in-hole angle adjustments;
- - No oversized holes - Reduce the amount of concrete required to fill the hole
- - Eliminates sideload on auger drives & augers, potentially causing damage & expensive repairs
- Get back to drilling faster after returning the auger into the hole
- HALO costs significantly less than traditional systems & eliminates the need for a costly in-cab display
Highly visible indicator
Halo features recessed high accuracy inclination green and red LED indicators, which can be clearly seen in daylight. With Halo, there in no need for an in-cab display screen, and no need to take your eyes off the job to realign your auger.
No setup (battery option)
Halo can be connected to the in-cab cigarette lighter, or powered by a magnetised rechargeable battery which will last all day, and can be charged via USB or a 240V wall charger. The battery pack can be attached to the drive hood, frame, machine boom, or placed in-cab.
Set angle of inclination
The battery powered option features a 'zeroing' function which lets the operator set the angle of inclination with the press of a button. This feature is ideal for the installation of shade sails.
Technology
HALO utilises a microprocessor and 6 sensors to provide accurate readings within +/- 1.5 degrees of plumb - Even under heavy vibration. Effectively eliminating the need for a spotter with a spirit level. The dust/water proof LED ring is also recessed into the hood to protect it from knocks.
Durable Australian quality
HALO is proudly made in Australia, and has undergone 4 years of development & testing to ensure the unit works faultlessly, and is capable of enduring the rigors of our industry.
Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities. Please note, that any location with a house is considered a residential property, including farms and businesses
Please contact us for a quote for business to business or home delivery 1300 020 317 or sales@emed1.com.au
