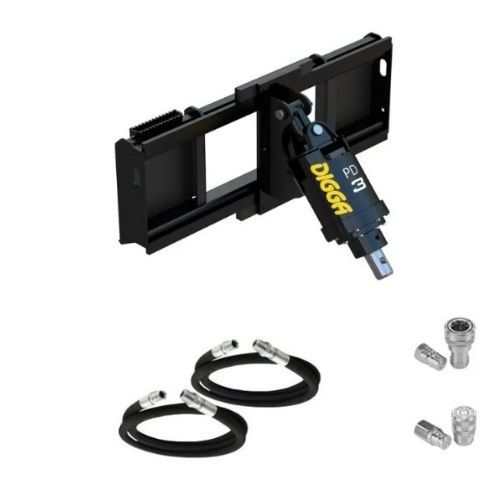

Digga PD3 Auger Drive Package with frame for Skid Steers with a flow of 45 to 75 lpm

Store / Attachments
$3,344.00
Price incl. GST (10%) $304.00
Hitch
Please choose
Auger Bit Tungsten Teeth MFT
Please choose
In stock
Product Details
Digga PD3 Auger Drive Packages for Skid Steers with a flow of 45 to 75 lpm

Digga’s range of earth drills are ideally suited for mini excavators 2 tonnes to 5 tonnes with a flow between 30 to 115 lpm. These planetary auger drives are fitted with Digga / Eaton bell motors specially designed for drilling and augering in most ground conditions.

  • Compact high torque Digga manufactured gearbox
  • Highly efficient design with less moving parts
  • Fitted with Eaton/Digga geroler hydraulic motor
  • No case drain required
  • Top mounted hose ports
  • Extreme duty shaft locking system
  • Low maintenance with 5yr gear box and 3yr motor warranty
  • Australian made

Options:

Part Number Description
PD3-2-MF AUGER DRIVE - PD3 65MM ROUND SHAFT WITH 2.2M HOSES & FIXED MULTIFIT FRAME
PD3-2-FR AUGER DRIVE - PD3 65MM ROUND SHAFT WITH 2.2M HOSES & SLIDE FRAME
PD3-2-FR-SCS AUGER DRIVE - PD3 65MM ROUND SHAFT WITH 2.2M HOSES & SWING CONTROL FRAME
PD3-2-TPE AUGER DRIVE - PD3 65MM ROUND SHAFT WITH 4.4M HOSES & TELESCOPIC PILING EXTENSION FRAME
PD3-2-TH AUGER DRIVE - PD3 65MM ROUND SHAFT WITH 2.2M HOSES & TELEHANDLER FRAME
PD3-2-TH-SCS AUGER DRIVE - PD3 65MM ROUND SHAFT WITH 2.2M HOSES & TELEHANDLER SWING CONTROLFRAME
PD3-2-AG AUGER DRIVE - PD3 65MM ROUND SHAFT WITH 2.2M HOSES & TRACTOR STANDARD FRAME
PD3-2-AG-SCS AUGER DRIVE - PD3 65MM ROUND SHAFT WITH 2.2M HOSES & SWING CONTROL FRAME
PDH3-2-MF AUGER DRIVE HALO - PD3 65MM ROUND SHAFT WITH 2.2M HOSES & FIXED MULTIFIT FRAME
PDH3-2-FR AUGER DRIVE HALO - PD3 65MM ROUND SHAFT WITH 2.2M HOSES & SLIDE FRAME
PDH3-2-TPE AUGER DRIVE HALO - PD3 65MM ROUND SHAFT WITH 4.4M HOSES & TELESCOPIC PILING EXTENSION FRAME


Features & Benefits

Digga drives come packed with really practical features like top mounted hose ports, cutting edge design, and a 2 piece shaft just to name a few. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.


Premium Drive Specifications

SPECIFICATION PD3 PD4 PD5 PD6
Rec Flow Range 45-75 lpm 55-85 lpm 60-95 lpm 70-115 lpm
Max Torque 3544 Nm 4448 Nm 5151 Nm 5596 Nm
Motor 2K Geroler 2K Geroler 2K Geroler 2K Geroler
Pressure Valve Fitted Optional Optional Optional Optional
Energy Control Valve N / A N / A N / A N / A
Case Drain Required No No No No
Max Pressure - - - - - - - - - - Do not exceed 240 bar @ 60 lpm - - - - - - - - - -
Max Flow - - - - - - - - - - Do not exceed 115 lpm @ 130 bar - - - - - - - - - -
Max Power - - - - - - - - - - Do not exceed 25 Kw (34 hp) - - - - - - - - - - -
Overall Length 579 mm 579 mm 579 mm 730 mm
Diameter 240 mm 240 mm 240 mm 240 mm
Weight (no frame / hitch) 57 Kg 58 Kg 67 Kg 89 Kg
Std Output Shaft 65 mm Round 75 mm Square 75 mm Square 75 mm Square
Swing Control Optional Optional Optional Optional
Diggalign Optional Optional Optional Optional
Halo Optional Optional Optional Optional
Rec Auger 4 Series 4 Series / 6 Series 6 Series 6 Series
Max Auger Dia Clay / Shale 600 mm 750 mm 900 mm 900 mm
Max Auger Dia Earth 750 mm 900 mm 1000 mm 1000 mm
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
