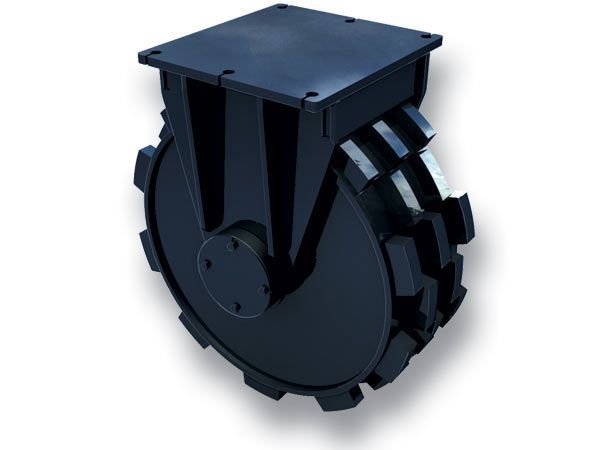

Digga Compaction Wheel suits from 3.5 Tonne to 8 Tonne Machines
The Digga Compaction Wheel, designed for easy compaction of dirt back into the trench.
Suit Machine Types: Excavators from 3.5 Tonne to 8 Tonne
Hitch not included- Purchase double pin hitch separately.
Features:
- Heavy Duty durable hammers
- Available in 4 trench widths: 100mm, 150mm, 200mm and 250mm (matching Digga trench widths)
- Fully sealed self-aligning bearings ensuring longer product life
- 100% Australian manufactured bearing housing ensuring greater protection for your bearings
Ideal Use: Compacting dirt back into trenches.
| A. Wheel Width | B. Wheel Diameter | C. Height | D. Diameter (overall) | E. Width (overall) | Hammer Qty | Weight (kgs) |
|---|---|---|---|---|---|---|
| 100mm | 600mm | 736mm | 680mm | 410mm | 20 | 143 |
| 150mm | 600mm | 736mm | 680mm | 410mm | 30 | 165 |
| 200mm | 600mm | 736mm | 680mm | 410mm | 40 | 185 |
| 250mm | 600mm | 736mm | 680mm | 410mm | 50 | 207 |
Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities. Please note, that any location with a house is considered a residential property, including farms and businesses
Please contact us for a quote for business to business or home delivery 1300 020 317 or sales@emed1.com.au
Please Advise your machines Make, Model & Pickup Specifications in special instructions during checkout.
