DIGGA RAMPS - EZY LOADER
RAMPS - EZY LOADER
PRICE INCLUSIONS: SET OF RAMPS, 2 PINS AND CLIPS
NOTE: CAPACITY BASED ON SET / PAIR OF RAMPS
Aluminium Loading Ramps
A light weight aluminium loading ramp with enhanced safety that delivers on quality, performance, and is cost effective. European designed and engineered, the Digga loading ramps feature the most advanced design in the Australian market today. Digga's aluminium loading ramps include a standard range (1t to 6.2t) and a Universal range (6.2t to 9t). The ramps are used to load excavators, skid steer loaders and mini loaders on trailers, tipper trucks and flat beds.
Loading Ramps Features & Benefits
- Patented extruded double T-rail with interlocking rungs
- 3 different connection methods
- Enhanced beam strength
- 18 Month Warranty
- CE and TUV certification
EN 1999-1-1:2010 & NA:2010-12 - New stronger rung design
- Reinforced bottom and top rungs
Length of reinforcement differs on every ramp model - Low to the ground bottom rung
- Superior strength & durability
Features & Benefits
The Digga aluminium loading ramp range comes packed with practical features as well as cutting edge design. Hover your mouse over the features´ 'plus' symbol on the diagram below to reveal the respective benefits.
Designs may vary depending on ramp tonnage.
Standard Loading Ramp Range
- Suitable for rubber tyres and rubber track machines
- Rung design prevents clogging up with mud, stones, and other debris reducing the risk of tyre/track slippage
- New rung design cleans the wheels/tracks as machines climb the ramp, minimising debris taken onto the truck
- New rung design allows operators to safely walk up the ramp
- Smoothest ride of any ramp on the market
Universal Loading Ramp Range
- Superior strength, versatility, and safety
- The first dual purpose loading ramp available for rubber, steel tracked, and wheeled machines
- Rungs are level with the top of the main supporting rail, minimising wear and providing greater durability
- Patented, studded rungs are machined from a solid, not hollow extrusion, minimising slip or loss of grip during the loading/unloading activity
Ezi-Loada Ramp Specifications
| DESCRIPTION | PRODUCT CODE | BEAM | WIDTH (INT) | WIDTH (EXT) | WEIGHT |
|---|---|---|---|---|---|
| Standard | LR152530 | 64 mm | 255 mm | 300 mm | 14 kg |
| Standard | LR233030 | 100 mm | 300 mm | 360 mm | 23 Kg |
| Standard | LR303030 | 115 mm | 300 mm | 360 mm | 26 Kg |
| Standard | LR303535 | 120 mm | 350 mm | 410 mm | 36 kg |
| Standard | LR353535 | 125 mm | 350 mm | 410 mm | 37 Kg |
| Standard | LR403545 | 140 mm | 450 mm | 510 mm | 46 Kg |
| Standard | LR473545 | 155 mm | 450 mm | 510 mm | 46 Kg |
| Standard | LR473550 | 155 mm | 500 mm | 560 mm | 51 Kg |
| Standard | LR593545 | 150 mm | 450 mm | 510 mm | 53 Kg |
| Universal | LRU593550 | 150 mm | 500 mm | 560 mm | 60 Kg |
| Universal | LRU663550 | 170 mm | 500 mm | 560 mm | 61 Kg |
| Universal | LRU823550 | 180 mm | 500 mm | 560 mm | 77 Kg |

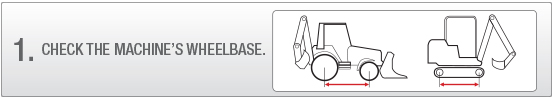

Choosing Your Ramps
Ramp Capacity By Machine Wheelbase Length
| STANDARD RANGE | CAPACITY @ WHEELBASE | LENGTH |
|---|---|---|
| LR152530 | 1.5 tonne @ 1 m | 2500 mm |
| LR233030 | 2.2 tonne @ 1 m | 3000 mm |
| LR303030 | 3.7 tonne @ 1.5 m | 3000 mm |
| LR303535 | 3.4 tonne @ 1.5 m | 3500 mm |
| LR353535 | 4.0 tonne @ 1.5 m | 3500 mm |
| LR403545 | 4.0 tonne @ 1.5 m | 3500 mm |
| LR473545 | 4.7 tonne @ 1.5 m | 3500 mm |
| LR473550 | 4.7 tonne @ 1.5 m | 3500 mm |
| LR593545 | 6.2 tonne @ 2.0 m | 3500 mm |
| UNIVERSAL RANGE | CAPACITY @ WHEELBASE | LENGTH |
|---|---|---|
| LRU593550 | 6.2 tonne @ 2.0 m | 3500 mm |
| LRU663550 | 7.0 tonne @ 2.0 m | 3500 mm |
| LRU823550 | 9.0 tonne @ 2.0 m | 3500 mm |
Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities. Please note, that any location with a house is considered a residential property, including farms and businesses
Please contact us for a quote for business to business or home delivery 1300 020 317 or sales@emed1.com.au
