DIGGA 1675MM (66”) SMOOTH DRUM VIBRATORY ROLLER, BUILT IN MULTIFIT FRAME, HOSES & COUPLERS - POA CONTACT US FOR A QUOTE

$0.00
Price incl. GST (10%) $0.00
In stock
Product Details

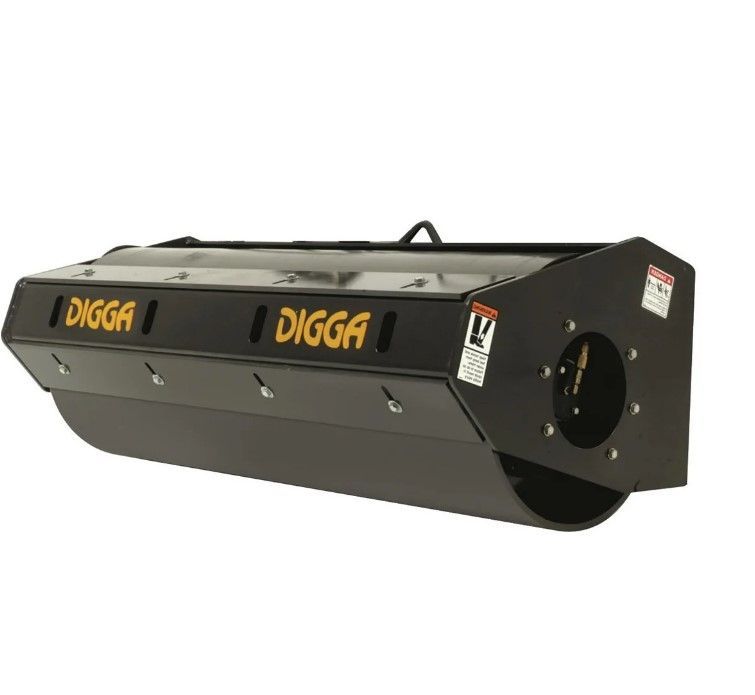

Vibratory Roller for Skid Steer and Track Loaders

POA CONTACT US FOR A QUOTE AND LEAD TIME

Suit Machine Types
Skid Steer Loaders & Track Loaders

Features
The hydraulic drives of the roller are protected and isolated to provide maximum performance and reliability. These hard-hitting units can deliver up between 3500 and 4250kgs of dynamic force depending on the model. It’s versatility makes the vibratory roller highly effective on a wide range of materials including sand, gravel, soils and asphalt for use on a Skid Steer Loader.

The Digga Vibratory Roller is available with a smooth drum providing our customers with a productive and cost effective compaction attachment. The steel drum has an adjustable steel scraper blade between the frame and the drum, ensuring smooth and uniform compaction performance.

Ideal Use
Rental fleets, contractors, landscaping, roadways, walkways, bike paths, golf courses, bridges and parking lots.

Specifications VR-000001 - Smooth VR-000003 - Padfoot VR-000005 - Smooth
A Drum Width
1675 mm 1675 mm 2133mm
B Drum Diameter 600mm
508 mm 600mm
Dynamic Force 3500 kgs
3538 kgs 4250kg
Operating Weight 975 kgs
946 kgs 1147 kgs
Vibrating Speed 2,600 vpm
2,600 vpm 2,600 vpm
Flow Range 53 - 85 LPM 53 - 85 LPM 53 - 85 LPM
Max Pressure 205 Bar 205 Bar 205 Bar
Padfoot Roller also Available
Vibratory Roller Dimensions Digga Padfoot Roller
