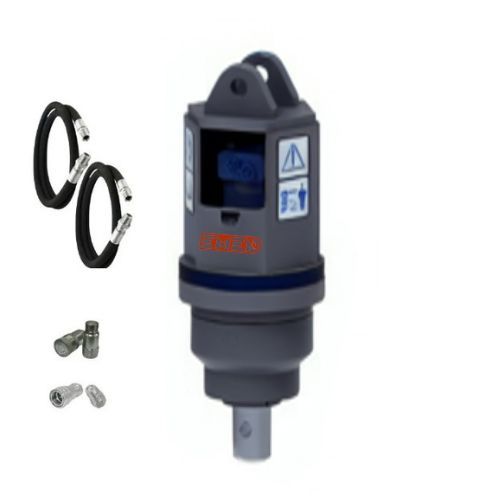

Auger drive EMED 30000 series with fittings and hoses – suits 15 to 22 tonne excavators 75mm Square Hub

The Auger Drive, EM30000 suitable for excavators ranging from 15 to 22 tonnes, is a versatile tool compatible with drill bits from 100-900mm.

Designed for various machinery including excavators, skid steer loaders, backhoe loaders, cranes, and more, it's ideal for applications like tree planting, fence piling, and landscaping.

Please note:

Quick connects to the machine are not included. Contact us for further information on our teeth and suitability for your auger drill

Specifications

Suitable for Excavators: 15 - 22 tonnes

Max Output Torque: 30000 nm

Pressure: 160-260 bar

Oil Flow: 80-170 lpm

Output Shaft Speed: 12 - 28 rpm

Weight: 255 kgs

Overall Length: 1158 mm

Hydraulic Hose: 1” BSP

Output Shaft Size: 75mm square

Key features

• Auger drives fit machines from 1.5 to 40 tonnes.
• Output power ranges from 1900Nm to 80000Nm.
• Offers various types of augers and helical anchors compatible with the auger drive.
• Constructed with high-quality EN series gear steel and latest processing technology.
• Capable of achieving drilling depths up to 12 meters.
• Standard diameter sizes from 100mm to 2000mm.

Perfect for: Airman, Bobcat, Case, CAT, Eurocomach, Hitachi, Hyundai, JCB, Kobelco, Komatsu, Kubota, New Holland, Takeuchi, Volvo, Wacker Neuson, Yanmar, Yuchai and all other makes and models in the 15 to 22 Ton Range.

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities. Please note, that any location with a house is considered a residential property, including farms and businesses

Please contact us for a quote for business to business or home delivery 1300 020 317 or sales@emed1.com.au

All our attachments come with a 12 month warranty & lifetime support!
