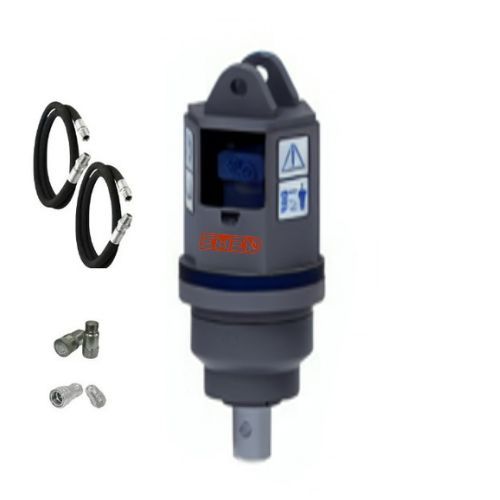

Auger drive 50000 series with fittings and hoses – suits 20 to 36 tonne excavators 110mm Square Hub

The Auger Drive, EM50000 suitable for excavators ranging from 20 to 36 tonnes, is a versatile tool compatible with drill bits from 100-900mm.

Designed for various machinery including excavators, skid steer loaders, backhoe loaders, cranes, and more, it's ideal for applications like tree planting, fence piling, and landscaping.

Please note:

Quick connects to the machine are not included. Contact us for further information on our teeth and suitability for your auger drill

Specifications

Suitable for Excavators: 20 - 36 tonnes

Max Output Torque: 50000 nm

Pressure: 220-350 bar

Oil Flow: 100-300 lpm

Output Shaft Speed: 0 - 30 rpm

Weight: 460 kgs

Overall Length: 1354 mm

Hydraulic Hose: 1” BSP or 1 - 1/4" BSP

Output Shaft Size: 110mm square

Key features

• Auger drives fit machines from 1.5 to 40 tonnes.
• Output power ranges from 1900Nm to 80000Nm.
• Offers various types of augers and helical anchors compatible with the auger drive.
• Constructed with high-quality EN series gear steel and latest processing technology.
• Capable of achieving drilling depths up to 12 meters.
• Standard diameter sizes from 100mm to 2000mm.

Perfect for: Airman, Bobcat, Case, CAT, Eurocomach, Hitachi, Hyundai, JCB, Kobelco, Komatsu, Kubota, New Holland, Takeuchi, Volvo, Wacker Neuson, Yanmar, Yuchai and all other makes and models in the 20 to 36 Ton Range.

Due to the dimensions of this item, all deliveries will be shipped to the closest freight depot, or Commercial business with forklift facilities. Please note, that any location with a house is considered a residential property, including farms and businesses

Please contact us for a quote for business to business or home delivery 1300 020 317 or sales@emed1.com.au

All our attachments come with a 12 month warranty & lifetime support!
